DETAILS

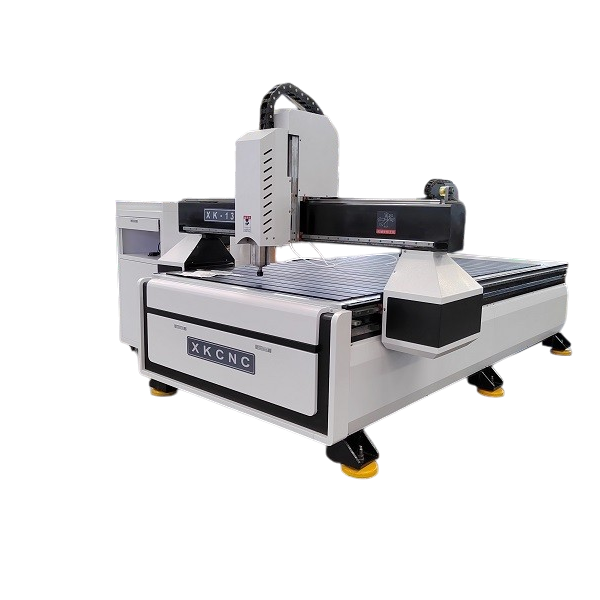

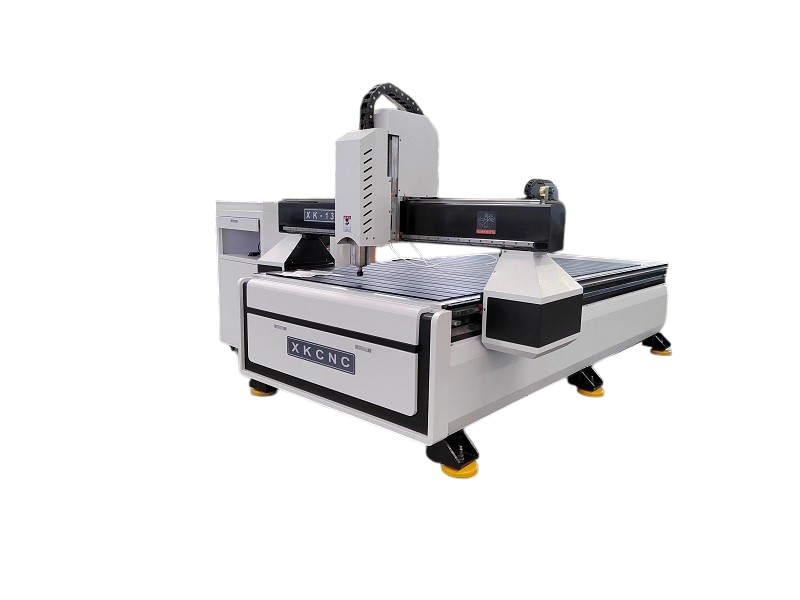

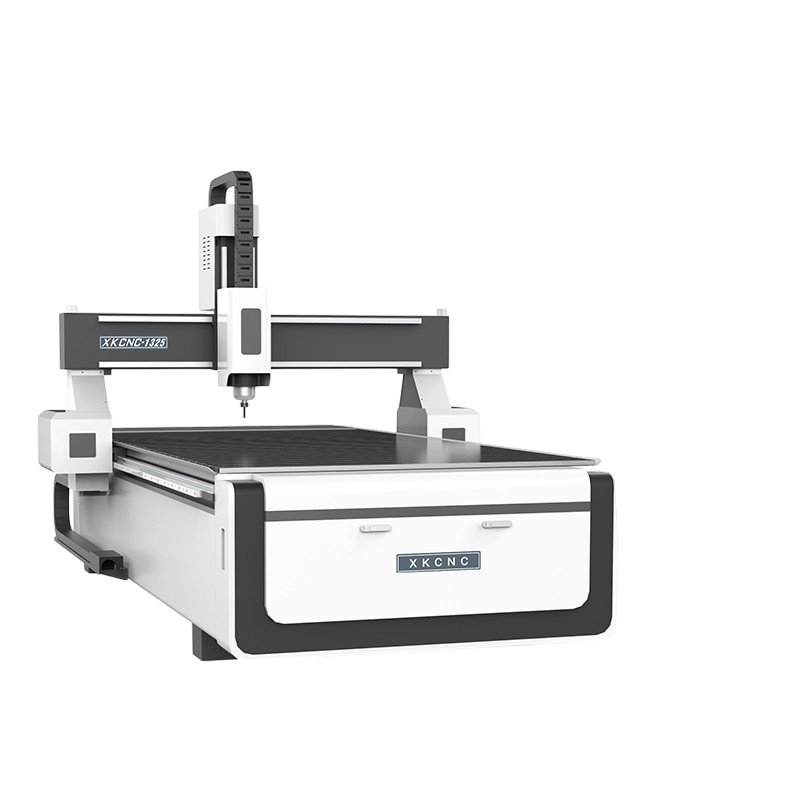

Model-XK-1325
Working area-1300×2500×200mm
Control system-NC Studio
Driven system-X, Y axis helical rack drive, Z axis Taiwan TBI ball screw
Working table-Intelligent protection of the work surface
Max speed-≥15m/min
Spindle speed-6000-24000rpm/min
Voltage-380V/50HZ
Software-Wentai, Jingdiao
Packing size-3200*2250*1830mm
Lubrication system-Automatic oil lubrication system
N.W./G.W.-900kg/1050kg
